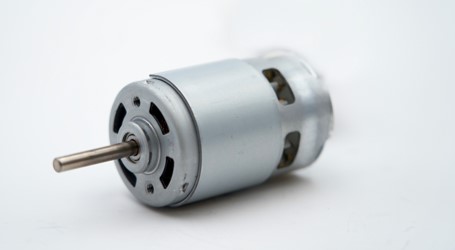

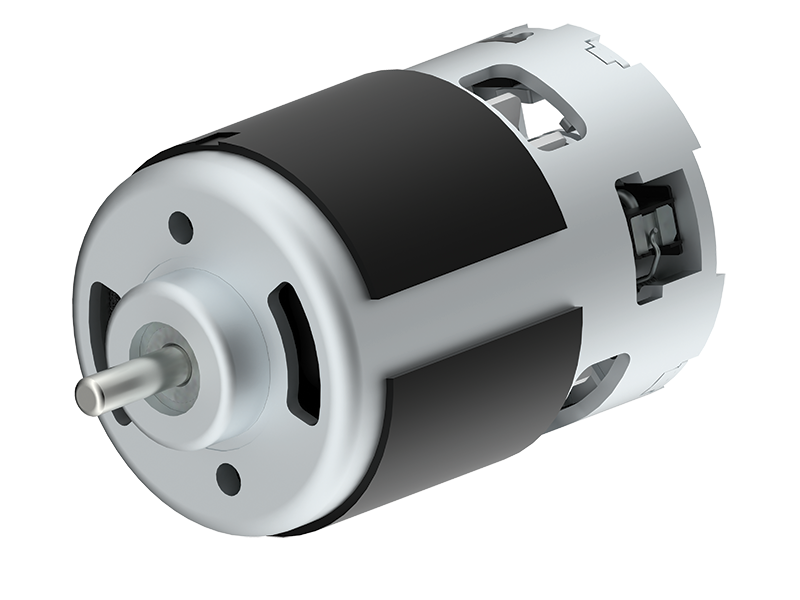

Brush Motors (PMDC)
-
Ideal for lower lifetime (<200h) applications, Actuator Brush Motors are well-suited for economically-priced and easy-to-operate applications. The motor speed can be easily regulated by simple control of the voltage.
Structure Options
Leaf brushes are a cost-effective choice for applications that meet a more standard power and lifetime requirement. Caged brushes are specified for higher lifetime and high current needs. Actuator also offers an integrated EM filter that assists with EM certification.
Standard Platforms – Outside Diameter
Ø27.5mm , Ø36mm, Ø42mm, Ø48mm, Ø101mm, Ø115mm
PMDC Brush Motor range
| Outside diameter (mm) | Peak Power (@) | Speed Min (RPM) | Speed Max (RPM) | Range Speed | Torque (mNm) |
|---|---|---|---|---|---|
| Ø27.5 0.5-100W |
100 | 2,000 | 25,000 | 23,000 | 10 – 160 |
| Ø36 4-190W |
190 | 2,000 | 25,000 | 23,000 | 60 – 650 |
| Ø42 20-390W |
390 | 2,000 | 25,000 | 23,000 | 200 – 1,350 |
| Ø48 40-920W |
920 | 6,000 | 25,000 | 19,000 | 600 – 2,100 |
| Ø101 250-1,000W |
1,000 | 2,000 | 6,000 | 4,000 | 4,000 – 13,000 |
| Ø115 250-1,400W |
1,400 | 2,000 | 6,000 | 4,000 | 8,000 – 18,000 |
All platforms can be be custom engineered to meet specific requirements in terms of voltage, power, speed, torque and durability.
Contact Us for more information, or if you want us to review your application.
