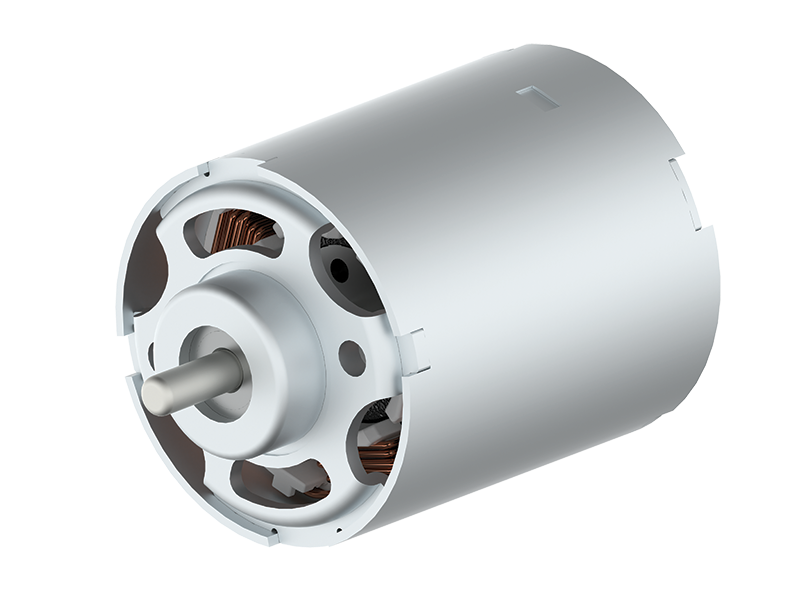

Brushless Motors (EC)
-
Brushless motors are optimal for higher-lifetime expectancy and for higher power density applications. The electronics are also more complex. Brushless motors offer more versatility in speed, position and torque control.
Structure Options
Actuator produces motors with segmented surface magnets (SPM) or ring magnets for applications that require high torque and easy control. The structure of the motor can be adapted for AC or DC power supply. For high speed or high vibration applications, Actuator specs internal permanent magnets (IPM). An additional option includes spoke design for very high power density applications. Available in sensored or sensorless configuration.
Standard Platforms – Outside Diameter
Ø38mm , Ø44mm, Ø48mm, Ø50mm, Ø54mm, Ø63mm, Ø65mm, Ø90mm, Ø100mm, Ø140mm
BLDC Brushless motor range
| Outside diameter (mm) | Peak Power (@) | Speed Min (RPM) | Speed Max (RPM) | Range Speed | Torque (mNm) |
|---|---|---|---|---|---|
| Ø38 4-260W |
260 | 2,000 | 30,000 | 28,000 | 60 – 650 |
| Ø44 250-380W |
380 | 2,000 | 30,000 | 28,000 | 200 – 1,200 |
| Ø48 250-760W |
760 | 2,000 | 30,000 | 28,000 | 300 – 2,100 |
| Ø50 250-760W |
760 | 2,000 | 30,000 | 28,000 | 300 – 2,100 |
| Ø54 250-850W |
850 | 2,000 | 30,000 | 28,000 | 300 – 2,500 |
| Ø63 250-1,000W |
1,000 | 2,000 | 30,000 | 28,000 | 300 – 3,000 |
| Ø65 250-1,920W |
1,920 | 2,000 | 30,000 | 28,000 | 300 – 4,000 |
| Ø90 200-2,000W |
2,000 | 2,000 | 11,500 | 9,500 | 3,000 – 8,000 |
| Ø100 200-1,800W |
1,800 | 2,000 | 6,000 | 4,000 | 5,000 – 18,000 |
| Ø140 200-2,500W |
2,500 | 2,000 | 6,000 | 4,000 | 8,000 – 30,000 |
All platforms can be be custom engineered to meet specific requirements in terms of voltage, power, speed, torque and durability.
